Azden UHF Dual-Channel Wireless Mic System with Two Bodypacks

$1,120.00

Category:

Description

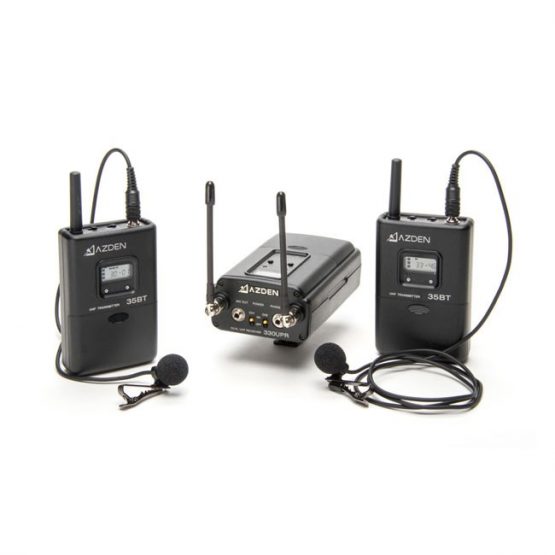

The Azden 330LT UHF dual wireless lavalier system is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of 2 Azden 35BT body-pack transmitters, 2 EX-503L lavalier microphones, and the 330UPR portable dual-channel receiver. The inclusion of 2 body-packs allows users to operate both microphones simultaneously.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LT is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

330UPR Receiver

  • Frequency Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB (100% Deviation)
  • Audio Out: MIC Level – Unbalanced – 3.5mm Mini-Jack
  • -28 dBm (100% Deviation – Mic Level)
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.87″W x 4.45″H x 1.59″D (73 x 113 x 40.5 mm)
  • Weight Approx.: 10.2 oz (290g) w/batteries

35BT Transmitter

  • Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
  • Weight: Approx. 6oz (170g) w/batteries
