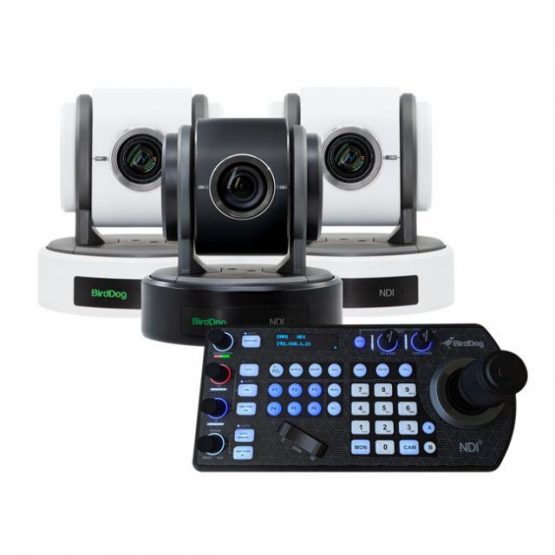

BirdDog Eyes P100 1080P Full NDI PTZ Camera with SDI (2x White / 1x Black) & PTZ Keyboard Controller Bundle
Your entry into the world of NDI ®.
Built on BirdDog’s custom NDI® silicon chip, the P100 PTZ camera is your entry into the world of full NDI®. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI® outputs, P100 gives you professional level quality, performance, and total flexibility.
3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience. Ultra compact and lightweight, P100 has been designed for even the smallest of spaces making it ideal for house of worship, classrooms, corporate training, and live streaming.
P100 can also be used as a traditional PTZ camera with RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready. Combine P100 with BirdDog PTZ Keyboard for ultimate control.
Use P100 as a source with BirdDog Central, the world’s best NDI delivery platform allowing you to send the P100 live camera to BirdDog NDI Decoders for extremely low latency display on any TV screen.
1 / 2.86” inch CMOS 2.2MP
Horizontal Angle of View
60.9o(W) – 6.43o(T)
F1.6(W) – F3.0 (T)
1/1 – 1/30000s
Auto, Push, Manual
Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜72°/S)
128 (Speed adjustable: Up to 150o/s)
0-5 Level adjustable
1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
IP PTZ Control
NDI Control (auto configuring)
Serial PTZ Control
2x RJ45: RS232/RS422/RS485
Serial Control Protocol
VISCA / Pelco D
POWER & DIMENSIONS
-10 – +50 (oC)
Full NDI – i-frame high quality low latency NDI for production
NDI – Discovery, configuration and control
Web Control interface
Full control via Web/Mobile UI including Scene presets
BirdDog PTZ Keyboard Controller
The World’s First NDI PTZ Keyboard.
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232.
By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.
Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations. Set up your quick access buttons to access Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, and Compensation.
3.5mm audio connectors allow PTZ Keyboard to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
The beautiful multi-coloured buttons and keys gives easy visual cues and makes using the PTZ Keyboard a breeze. Set up to 256 presets with memory of image parameters including camera moves (requires camera support).
LAN: RJ45 x1 (With PoE) 100 BASE-TX
RS232: RJ45 x1
RS422: RJ45 x2
Control signal format
VISCA over IP
RS 232/RS422 :Baud Rate 2400/4800/9600/19200/38400
Speed control: Yes, 2 knobs (pan/tilt, zoom)
Zoom rocker: Yes
Zoom ring ibn joystick: Yes
Programmable function buttins: 6
Maximum camera control: Max. 255 with multiple protocols including NDI/IP
Maximum serial connections:
Key/Button illumination: multi-colour LED
Exposure Selection: Yes, Button
One push White balance: Yes, Button
Backlight control: Yes, Button
Display status of WB, Iris, Gain, Shutter, Focus: Yes
White balance model selection: Yes, Button
R, B, Gain: Yes, Knob
Iris Adjustment: Yes, Knob
Shutter Speed: Yes, Knob
Focus model selection: Yes, Button
One push auto focus: Yes, Button
Manual focus: Yes, Knob
Power input: DC 12V, PoE (Power over Ethernet), Power via RS232/RS422 port
Operating Temp: 0-40oC
