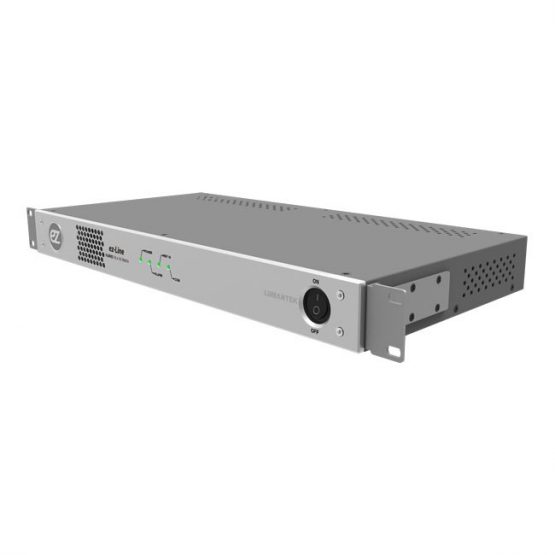

Lumantek VM16 ez-Line 16×16 Router

Lumantek VM16 ez-Line 16×16 Router

ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.

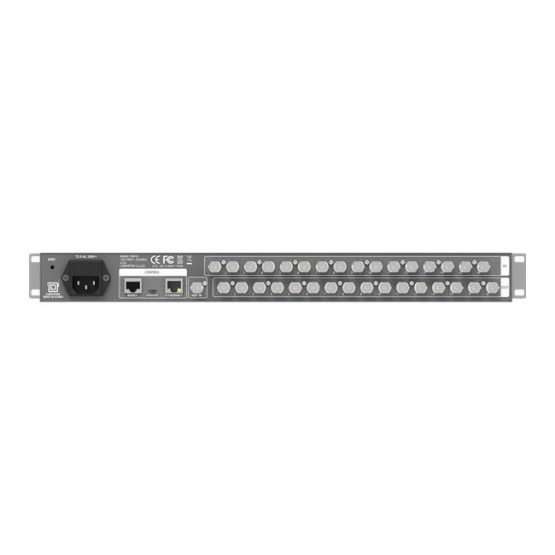

Input

• SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16
• Reference Input: B.B , TRI (BNC 75Ω ) x1

Output

• HD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16Connections
• Remote Control: RS-422 (RJ45)x1
• Ethernet: Ethernet Support (RJ45)x1
• Update: Debug (Micro-USB)x1

Electrical

• Power Input: 100~240VAC @ 50/60Hz
• Power Consumption: 18W(max.)
• Operation Temperature: 0~40℃

Physical

• Dimension: 44(H) X 483(W) X 240(D)
• Weight: 2.0 kg
