Lumantek VS6 ez-Pro 6×1 Seamless Switcher

Lumantek VS6 ez-Pro 6×1 Seamless Switcher

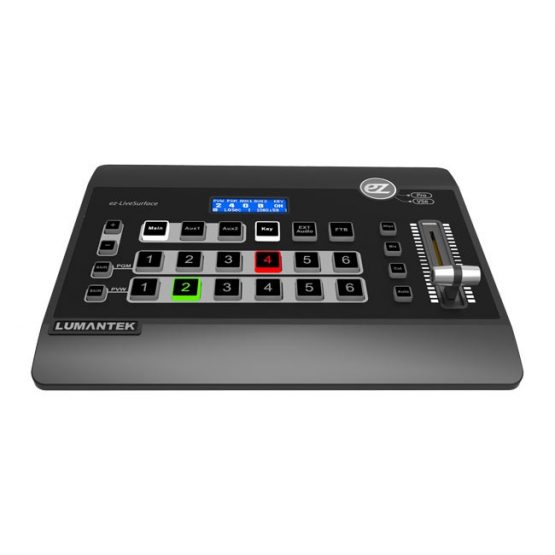

Bring your live production with Seamless Video Switching, ez-Pro VS6 has strong features, extremely easy operation for even non-professional users,most cost-effective way to apply CG for the live concerts, house of worship, conferences and more! Whenever you’ re doing live events with HD resolution broadcasting, then simply apply our ez-PRO VS6 to HD signal for amazing quality. Also enjoy our compact console which included in our package.

Input

• Video Input: SD/HD-SDI(BNC 75Ω) x6
• Fill Input: SD/HD-SDI(BNC 75 Ω) x1
• Key Input: SD/HD-SDI(BNC 75 Ω) x1
• Audio Input: Stereo XLR x2

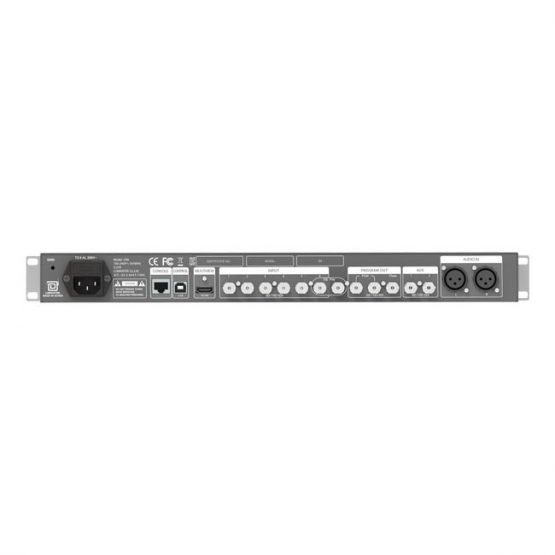

Output

• Video Output: SD/HD-SDI(BNC 75Ω) x5(PGMx2, Cleanx1, AUXx2)
• Multiview Output: HDMI x1, (1080P @60/50, 720p @ 60/50, 576P @50, 480P @60)
• Internal Processing: 4:2:2 10bit

Resolution supported

• 1920 x 1080i @ 59.94/60/50
• 1280 x 720p @ 59.94/60/50
• 720 x 576i @ 50 (625i)
• 720 x 480i @ 59.94 (525i)

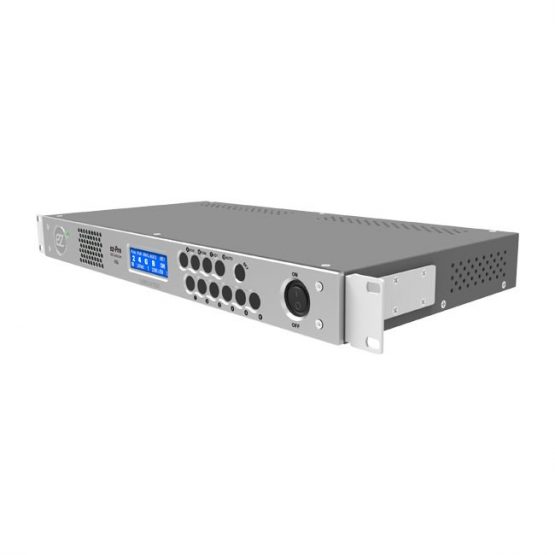

Management

• Control Buttons @ Front: Input select x6, Output select x2, Menu select x1,
• Key select x1, Transition select x1
• LCD @ Front: Status & Control
• LED @ Front: Easy to Identify Device Status
• USB @ Rear: Easy to use GUI application, Firmware Update

Physical

• Dimension:44(H) X 483(W) X 240(D)(excluding connectors)
• Power Input: 115~240VAC @ 50/60Hz, Operation Temperature: 0~40℃
• Power Consumption: 30W(max.), Weight: 3.1 kg
