Tentacle Sync E Standard Set

$520.00

Category:

Description

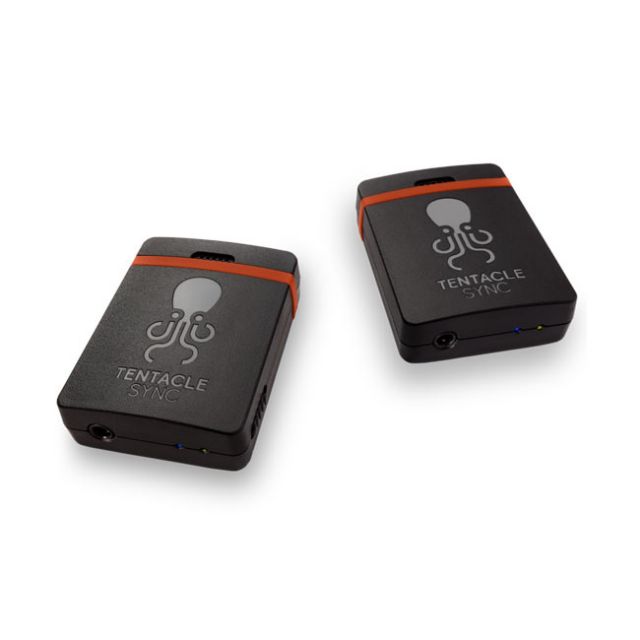

Tentacle Sync E Standard Set

The Tentacle SYNC E Standard Set is a complete hardware/software solution offering timecode synchronization over Bluetooth. The SYNC E is a user-friendly timecode generator housed in a super small enclosure. The Tentacle SYNC E Standard Set also includes the renowned Tentacle Sync Studio Software for macOS. For fast and easy syncing of your audio and video material. The Tentacle SYNC E is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks.

The Tentacle SYNC E is based on the original Tentacle Sync device. It now offers syncing over Bluetooth Low Energy (Bluetooth LE), which makes setting up and monitoring all your Tentacle units even easier – you only need an iOS or Android device. Check with frame accuracy how well your units are syncing. Connect your Tentacles to nearly ans kind of camera or audio recorder – from a DSLR to high-profile cameras such as the ARRI Alexa. Since the timecode is transmitted via 3.5mm mini jack, no bulky jacks or adapters are needed for connecting your equipment.

FEATURES

  • Syncing over Bluetooth 4.2 (Low Energy) for monitoring and setup via phone or tablet
  • Super Small and Lightweight
  • Frame rate and TC output level adjustable via Tentacle Setup App (iOs/ Android/ maOS/ Windows)
  • Two Tentacle Sync Studio Software Licenses included
  • Tentacle Clamp locks a right-angle mini jack connector
  • Accurate built-in reference microphone
  • Generates All SMPTE timecode rates or jam-sync to any external timecode source
  • High precision TCXO: accuracy less than 1 frame drift in 24 hours (-30°C to +85°C)
  • Designed and made with love in Cologne, Germany

SPECS

  • LTC Timecode: According to SMPTE-12M Standard
  • Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
  • Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
  • Timecode I/O: Mini Jack Socket
  • Audio: Built-In Reference Mic
  • Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)
  • Mounting: Integrated Hook Surface on the Back for Easy Mounting
  • Weight: 30 g / 1 oz
  • Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

The Tentacle SYNC E Standard Set is a complete hardware/software solution offering timecode synchronization over Bluetooth. The SYNC E is a user-friendly timecode generator housed in a super small enclosure. The Tentacle SYNC E Standard Set also includes the renowned Tentacle Sync Studio Software for macOS. For fast and easy syncing of your audio and video material. The Tentacle SYNC E is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks.
The Tentacle SYNC E is based on the original Tentacle Sync device. It now offers syncing over Bluetooth Low Energy (Bluetooth LE), which makes setting up and monitoring all your Tentacle units even easier – you only need an iOS or Android device. Check with frame accuracy how well your units are syncing. Connect your Tentacles to nearly ans kind of camera or audio recorder – from a DSLR to high-profile cameras such as the ARRI Alexa. Since the timecode is transmitted via 3.5mm mini jack, no bulky jacks or adapters are needed for connecting your equipment.
FEATURESSyncing over Bluetooth 4.2 (Low Energy) for monitoring and setup via phone or tabletSuper Small and LightweightFrame rate and TC output level adjustable via Tentacle Setup App (iOs/ Android/ maOS/ Windows)Two Tentacle Sync Studio Software Licenses includedTentacle Clamp locks a right-angle mini jack connectorAccurate built-in reference microphoneGenerates All SMPTE timecode rates or jam-sync to any external timecode sourceHigh precision TCXO: accuracy less than 1 frame drift in 24 hours (-30°C to +85°C)Designed and made with love in Cologne, Germany
SPECSLTC Timecode:      According to SMPTE-12M StandardDrift:                        High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)Frame rates:           23.98, 24, 25, 29.97, 29.97DF, 30Timecode I/O:        Mini Jack SocketAudio:                      Built-In Reference MicPower:                     Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)Mounting:               Integrated Hook Surface on the Back for Easy MountingWeight:                    30 g / 1 ozDimensions:           38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

WHAT’S IN THE BOX?2x   Tentacle Sync E – Timecode Generator with Bluetooth™ Functionality2x   Mini-Jack-Cable (90° angled) for Syncing Cameras with TRS input ( 5D, BMPCC, GH4 …)2x   USB-C Cable for Charging and Setup (Win/Mac)2x   Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E10x Velcro Loop Pads for Mounting the Tentacle to any Device4x   Coloured Rubber Bands1x    Quickstart Guide1x    Software Activation Details and Manual included
